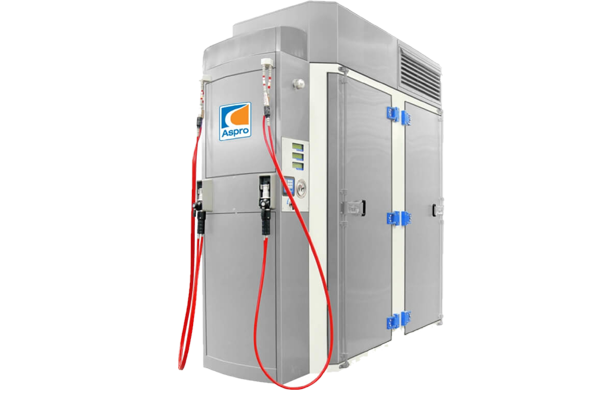

Modular CNG filling station ASPRO
The compact, modular mini CNG station is the ideal solution for departmental vehicle fleets. This solution enables new units to be added in the future, increasing the total capacity of the CNG station. The mini CNG station performs all the functions of a standard station, providing CNG production, storage and dispensing.
Capacity
90 to 530 m³/h
Discharge pressure
25 / 30 MPa
Compression stages
2 / 3 / 4 / 5
Transmission
direct
A single module houses:
- Compressor;
- 500 litre gas tank and dispenser for simultaneous refuelling of two vehicles.
SCA-50 capacity: 90 m3/hour to 530 m3/hour. Each CNG station with a compressor of this series can handle from 25 to 150 vehicles per day, with an average filling of 55 m3 per vehicle.
