Cryogenic Nitrogen Plants

Units that use cryogenic temperatures to produce liquid and gaseous nitrogen from atmospheric air.
Cryogenic nitrogen generation units are highly efficient facilities for the production of nitrogen with a maximum residual oxygen content of 5 ppm.


up to 100,000 m³/h

Nitrogen purity

up to 99.9999%


up to 20 MPa

Dew point

down to –70 °C

Cryogenic nitrogen generation technology is economically feasible in the majority of cases where the customer's nitrogen requirement is greater than 99.9999% purity and the nitrogen consumption is greater than 5,000 m³/h. For nitrogen requirements above 10,000 m³/h, cryogenic units are almost always more cost-effective than membrane or adsorption systems.

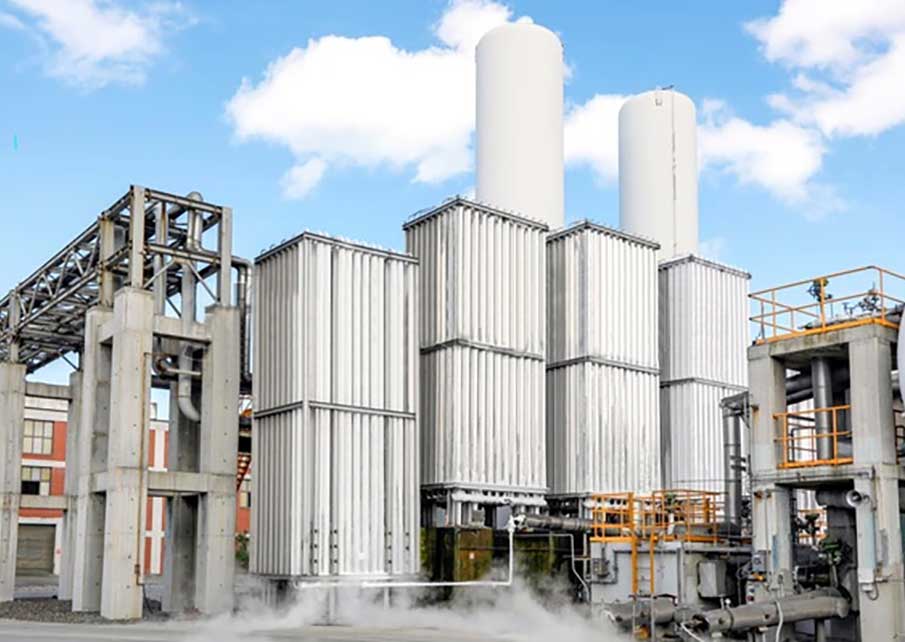

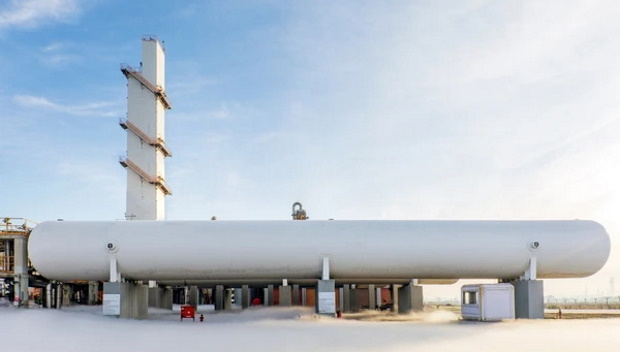

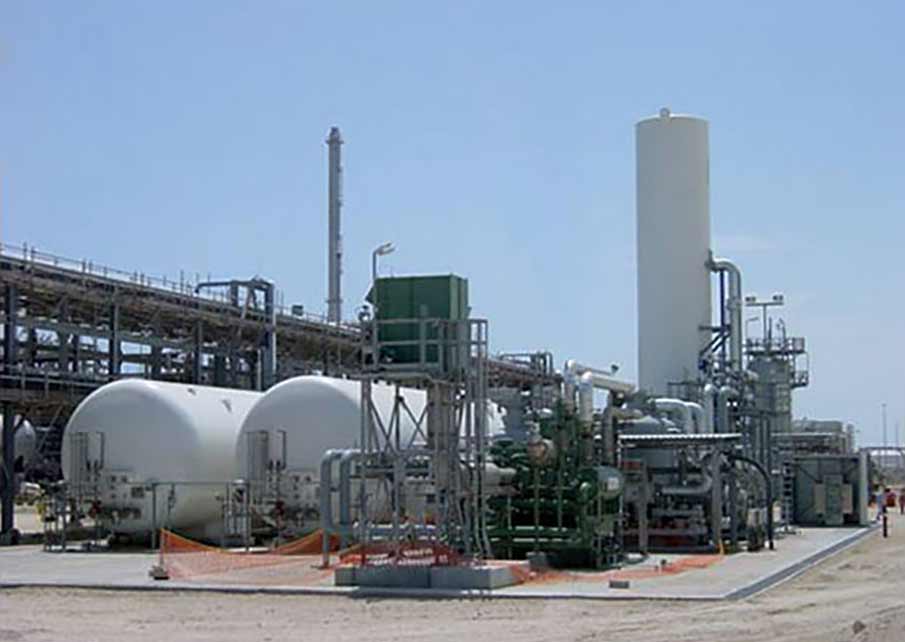

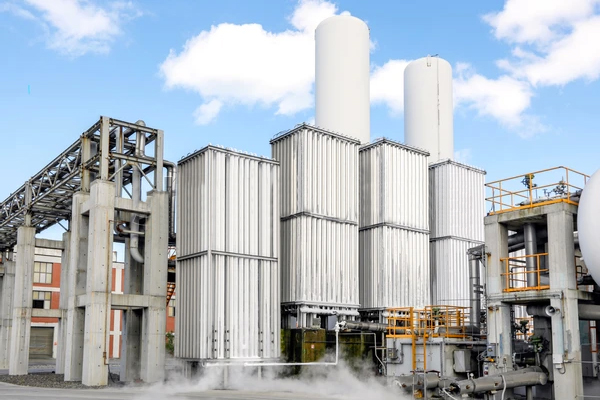

Product Images

Тех. характеристики

Capacity, m³/hup to 100,000

Nitrogen purity,%up to 99.9999

Pressure, MPaup to 20

Dew point temperature, °C−60 to −70

Operating temperature, °C−45 to +40

Unit operating life, thousands hours150 to 250

Cryogenic Liquid Nitrogen Generation Unit

Only cryogenic technology is the choice when the customer needs to produce nitrogen in both gaseous and liquid forms. Liquid air separation products can only be produced by low temperature rectification technology, whereas membrane and adsorption units only produce gases in the gaseous state.

Operating Procedure When Dealing With R&P Co. Grasys


Submit a request on the site or reach our specialist by phone


Grasys expert speaks to you and finds out your needs


You fill out a questionnaire with the desired equipment parameters


Our expert prepares a quotation with the most efficient solutions to your application. Contract to be concluded


We perform engineering, designing, manufacture equipment with its further testing and placing into service, etc


We ship equipment to the operational location and provide a package of documents


We are engaged in start-up operations and equipment commissioning


We provide aftersales service to ensure equipment efficient performance and reliability excellence (optional)

Advantages of Cooperating with R&P Co. Grasys

High-tech Russian manufacture

Implementation of import substitution programs

Hands-on experience in implementing over 1600 projects within 20 years

Manufacturing equipment of any size and level of sophistication

Turnkey projects (EPC-contracts)

Prompt technical support

Information contained herein does not constitute а public offer
