Hydrogen Recovery by Membrane Technology

Membrane hydrogen recovery units produce a gas stream enriched to a hydrogen content of 90–99.9% that can be returned to production. In many cases, membrane hydrogen concentration plants are used where the use of equipment based on other technologies is not possible or not technically feasible.

Membrane manufacturer

Company Grasys


up to 150,000 m³/h

Hydrogen purity

up to 99.9%


up to 13 MPa

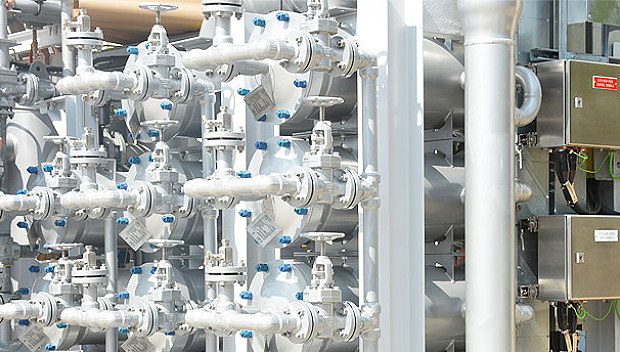

Product Images

Membrane Cartridges
Manufactured by Grasys

  • Hydrogen recovery and generation of a hydrogen-rich gas stream with a hydrogen content of 90–99.9%
  • Adjustment of H₂/CO components in synthesis gas
Learn more
Membrane Cartridges Manufactured by Grasys

Unit Schematic Diagram

Scheme membrane installation
Тех. характеристики

Membrane manufacturerResearch and Production Company Grasys

Capacity, m³/h up to 150,000

Hydrogen purity, %up to 99.9

Pressure, MPaup to 13

  • Oil refining processes

    Applications related to hydrogen recovery and concentration in refinery cycles.

    Concentration of hydrogen from hydrotreating, hydrocracking, isomerisation and catalytic reforming off-gases, reducing the concentration of undesirable impurities to the required level.

  • Chemical and petrochemical processes

    Recovery and concentration of hydrogen from pyrolysis, alkane and alkene dehydrogenation, methanol production off-gases and other process streams.

  • Ammonia production

    Separation of hydrogen from nitrogen, methane and argon in ammonia-bearing purge gas streams.

  • Synthesis gas production

    Regulation of the hydrogen/carbon monoxide ratio in the production cycle of oxosynthesis plants.

  • Preparation of all necessary process design calculations.
  • Engineering design activities.
  • Manufacturing a set of equipment.
  • Commissioning.
  • Service maintenance.
  • Replacement of membranes in operational units from other manufacturers.

R&P Co. Grasys is the only company in the Russian Federation that provides a full range of services for the manufacture and maintenance of membrane hydrogen recovery units.

Operating Procedure When Dealing With R&P Co. Grasys


Submit a request on the site or reach our specialist by phone


Grasys expert speaks to you and finds out your needs


You fill out a questionnaire with the desired equipment parameters


Our expert prepares a quotation with the most efficient solutions to your application. Contract to be concluded


We perform engineering, designing, manufacture equipment with its further testing and placing into service, etc


We ship equipment to the operational location and provide a package of documents


We are engaged in start-up operations and equipment commissioning


We provide aftersales service to ensure equipment efficient performance and reliability excellence (optional)

Advantages of Cooperating with R&P Co. Grasys

High-tech Russian manufacture

Implementation of import substitution programs

Hands-on experience in implementing over 1600 projects within 20 years

Manufacturing equipment of any size and level of sophistication

Turnkey projects (EPC-contracts)

Prompt technical support

Information contained herein does not constitute а public offer
