Nitrogen PSA unit EPC-project
Customer: VANKORNEFT JSC
Service:
Assurance of the flow process requirements:
mode 1 — nitrogen blanketing in oil storage tanks;
mode 2 — nitrogen blanketing in produced water tanks.
Specifications
Capacity
two modes 6,600 m3/h и 2,000 m3/h
Generated nitrogen purity
99% and 99.98%
Outlet product nitrogen pressure
0.9 МPа (g)
Project description
- One of the most efficient nitrogen adsorption plants in Russia
- Operation indoors in the Far North in the permafrost region, thedeployed materials used have been developed with a view to stroring at low temperatures
- The unit is located in a separate building equipped with heating, ventilation, lighting and fire fighting systems
- The unit operates in two modes
- Monitoring and control system enables the capability of manual, automatic local and workshop unit control
Version
Permanent-type
Prefabricated building

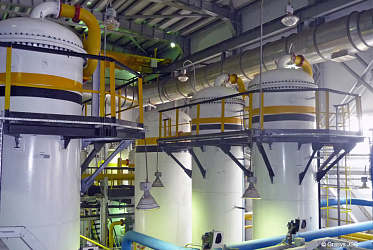

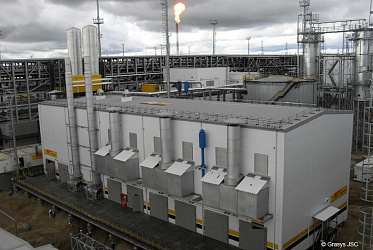

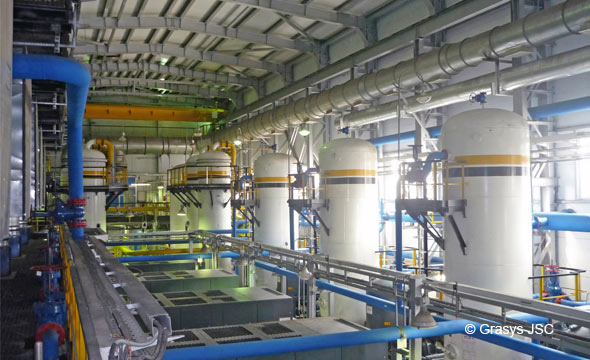

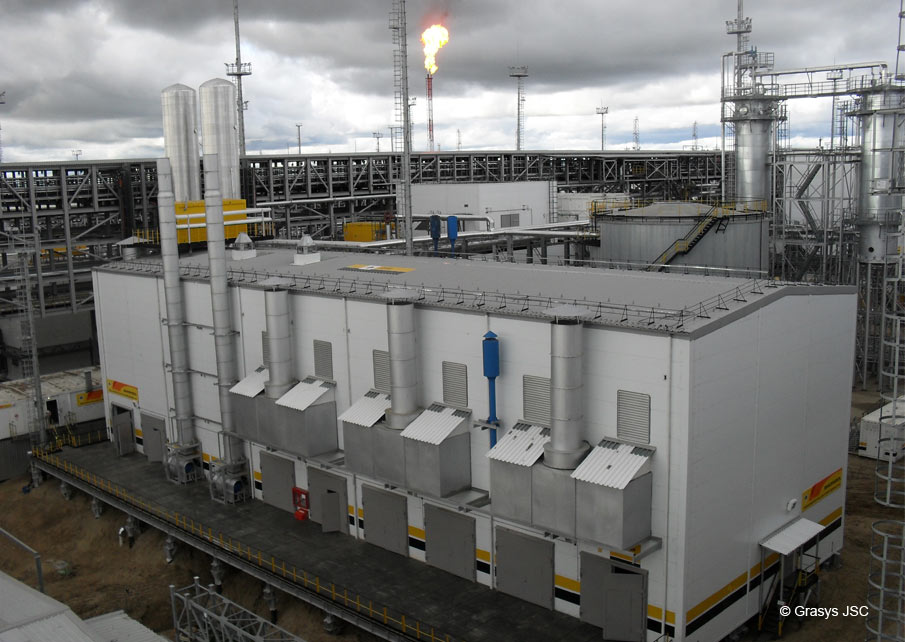

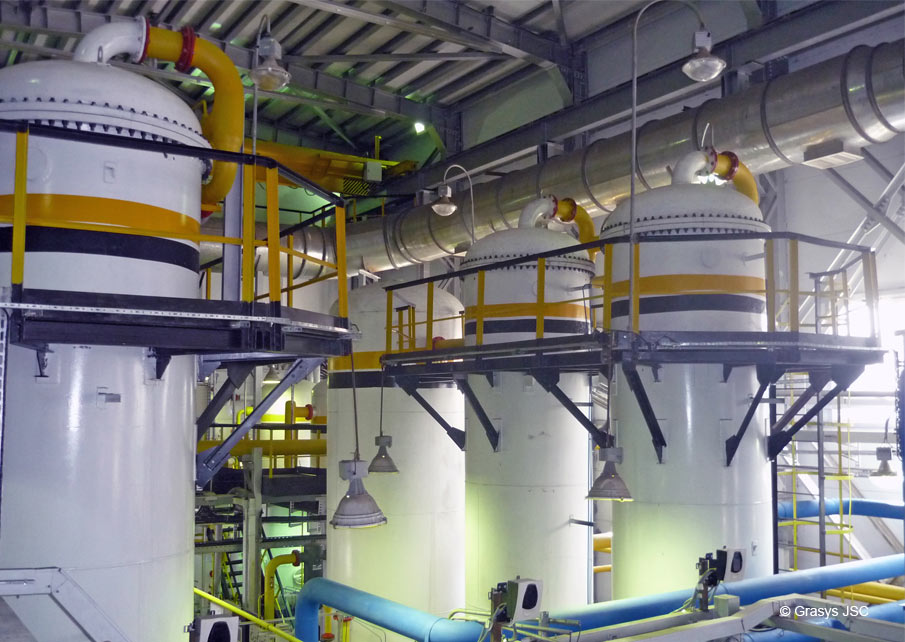

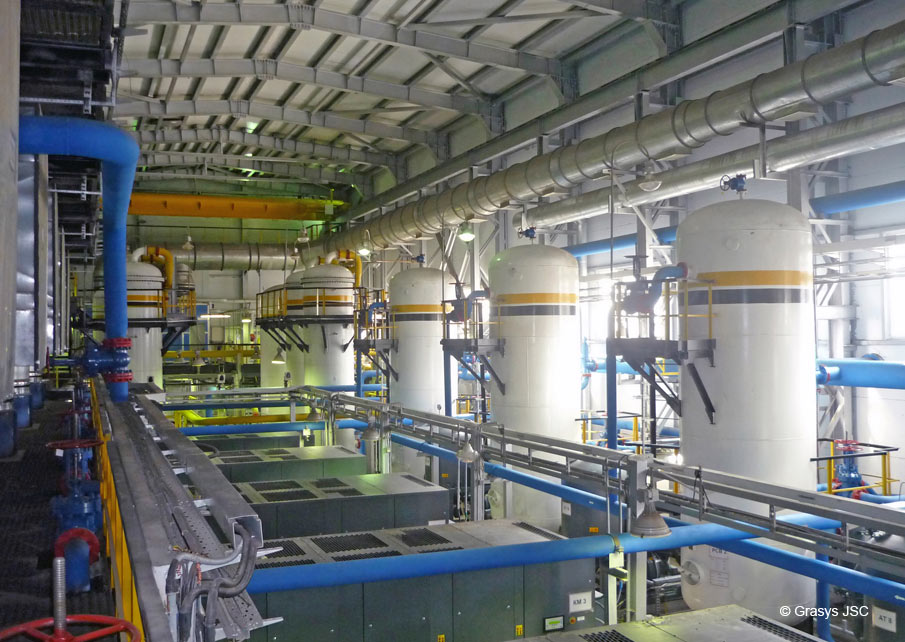

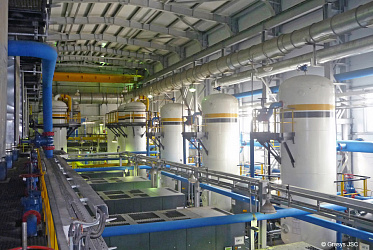

Photos of implemented project
Work performed
Grasys has completed a package of work as follows:
Front end engineering design
Designing
Off-site equipment procurement
Manufacture
Delivery
Construction and assembly operations
Hook-up and commissioning
