Membrane nitrogen unit in modular building EPC-project
Customer: VANKORNEFT JSC
Service:
Nitrogen supply to the distribution network for supporting nitrogen blanket in tanks and vessels, for process needs, straight oil firing furnace shutdown and gas screen creation
Specifications
Capacity
three trains 2,050 m3/h
two trains 250 m3/h
Generated nitrogen purity
99%
Product nitrogen pressure
1.1 МPа (g)
Project description
- Equipment configuгation: inert gas production units (continuous nitrogen production) of 250 m³/h capacity comprised of two nitrogen processing trains featuring capacity of 100% each, inert gas production units (periodic nitrogen production) of 2,050 m³/h capacity, as part of three nitrogen processing trains featuring capacity of 50% each, off-site equipment
- The unit is installed in a separate modular building with service platforms, stairs and railings
- The placement area is applicable to the northern building-and-climatic zone with location in an isolated and distant from populated area region. Major and off-site equipment and materials are designed for extreme temperatures up to minus 60°C during transportation and installation
Version
Permanent-type.
Prefabricated building

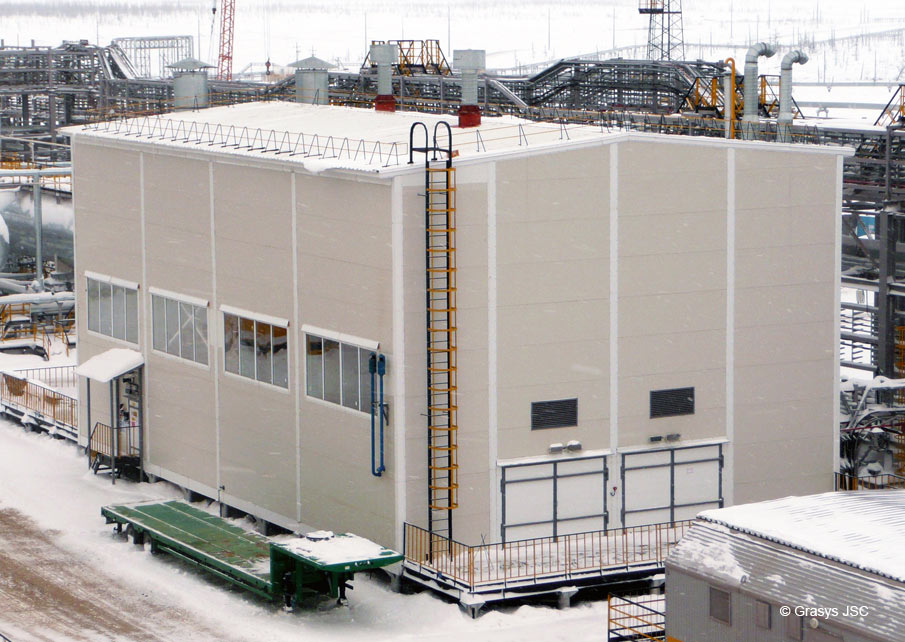

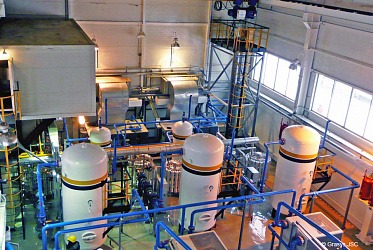

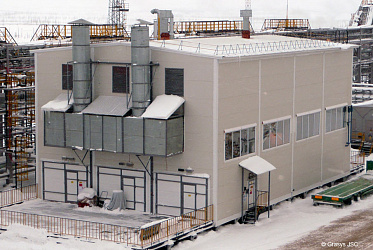

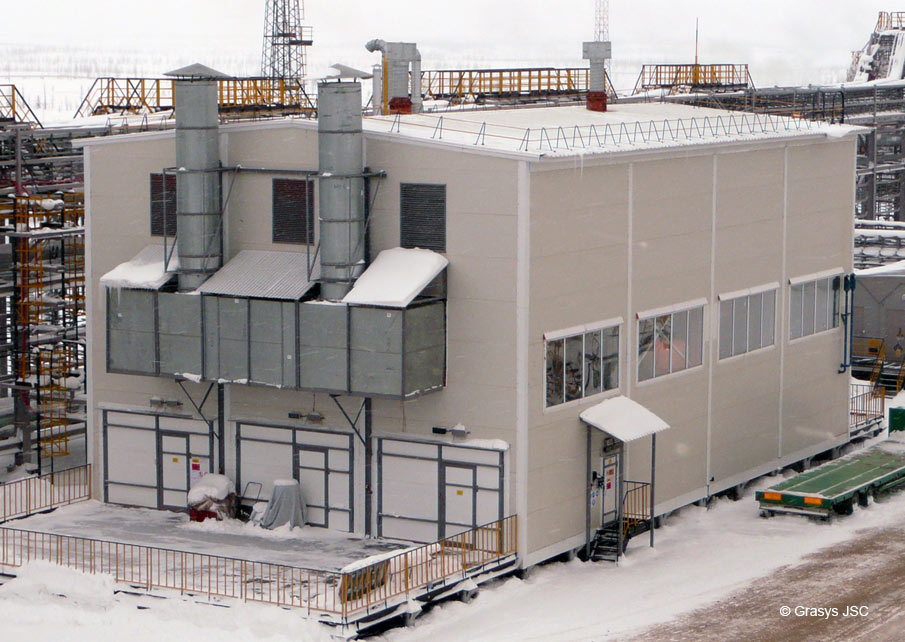

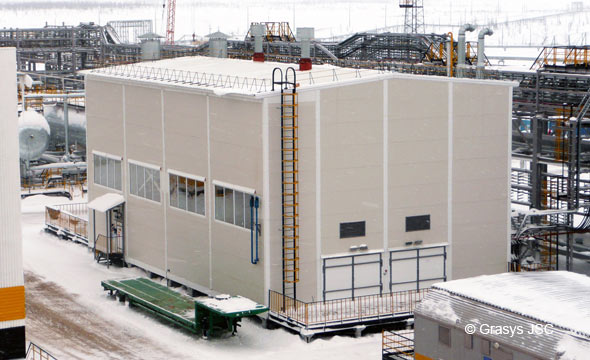

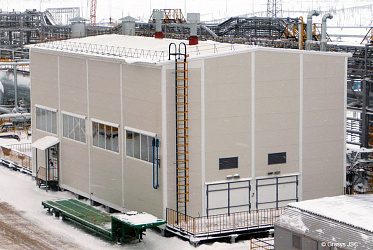

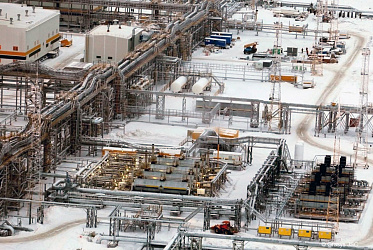

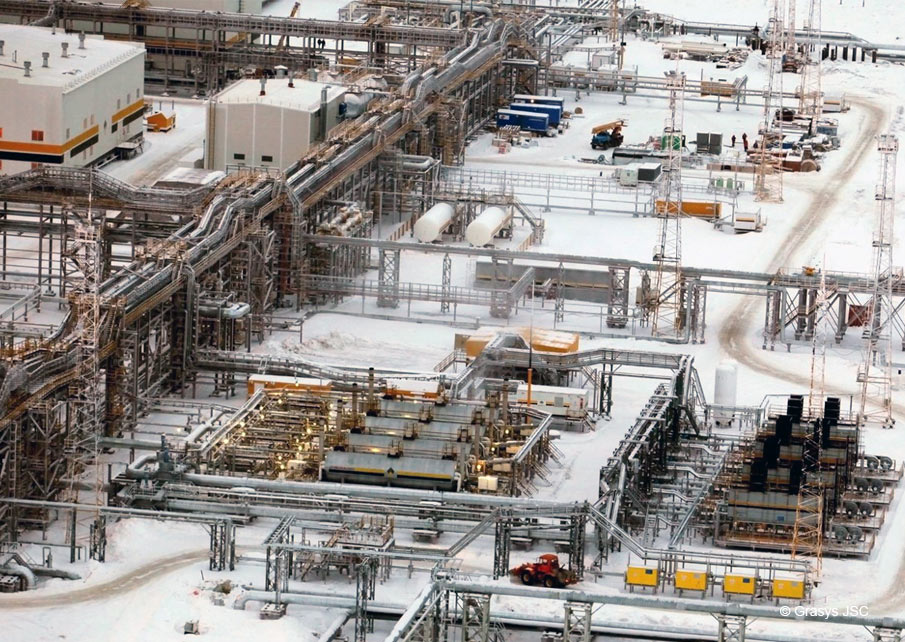

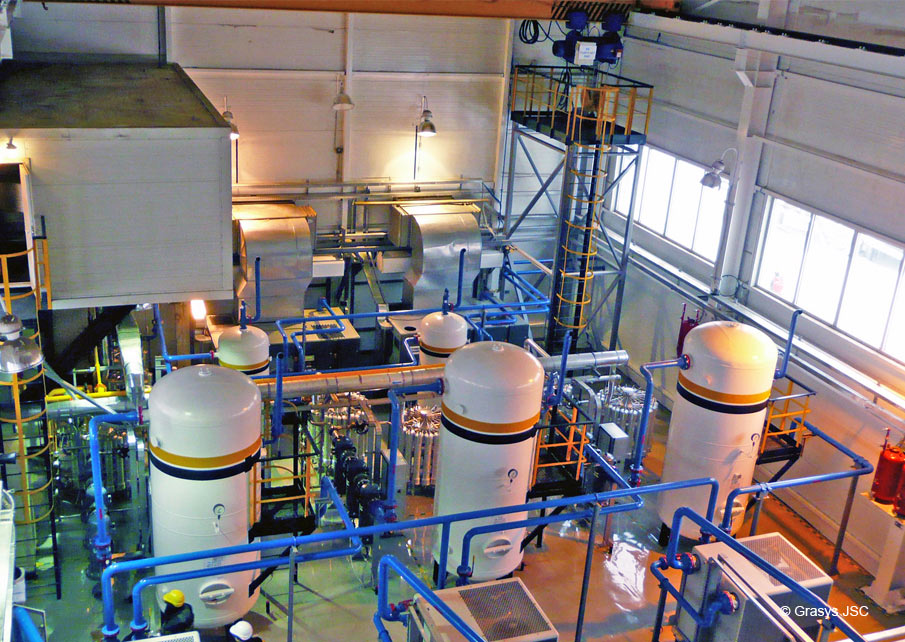

Photos of implemented project
Work performed
Grasys has completed a package of work as follows:
Front end engineering design
Designing
Off-site equipment procurement
Manufacture
Delivery
Construction and assembly operations
Hook-up and commissioning
